IoT-Based Solar & Footstep Hybrid Power Generation

Description

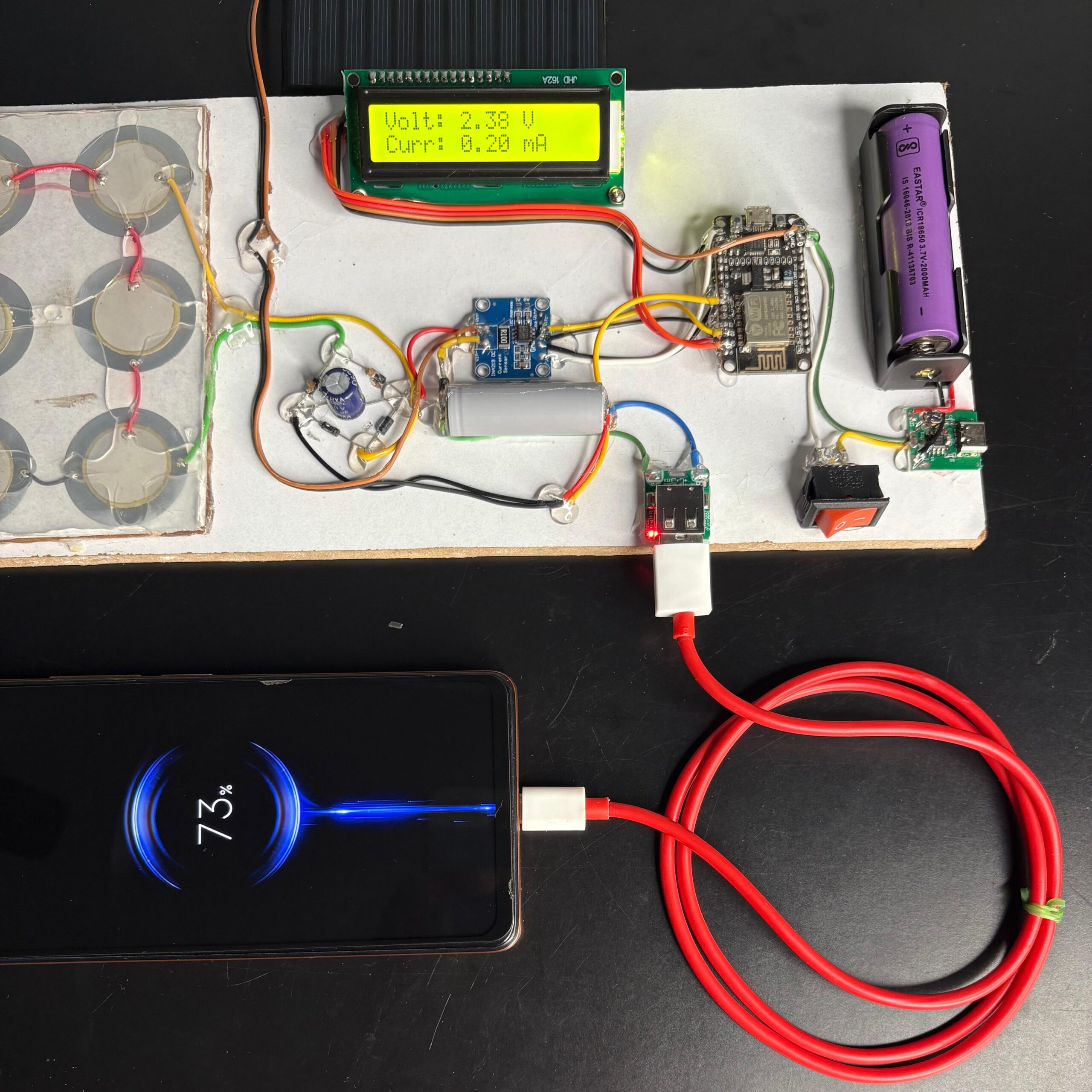

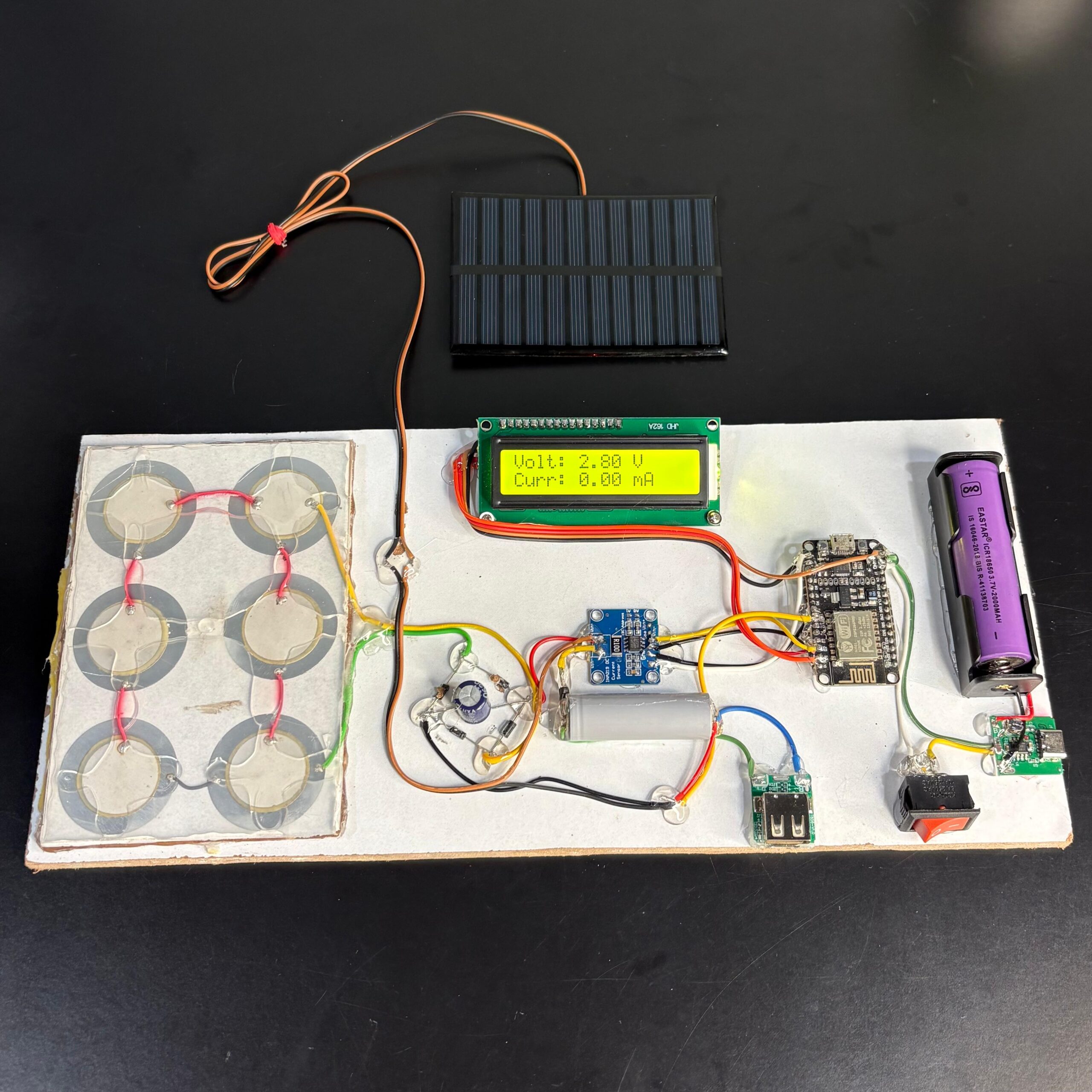

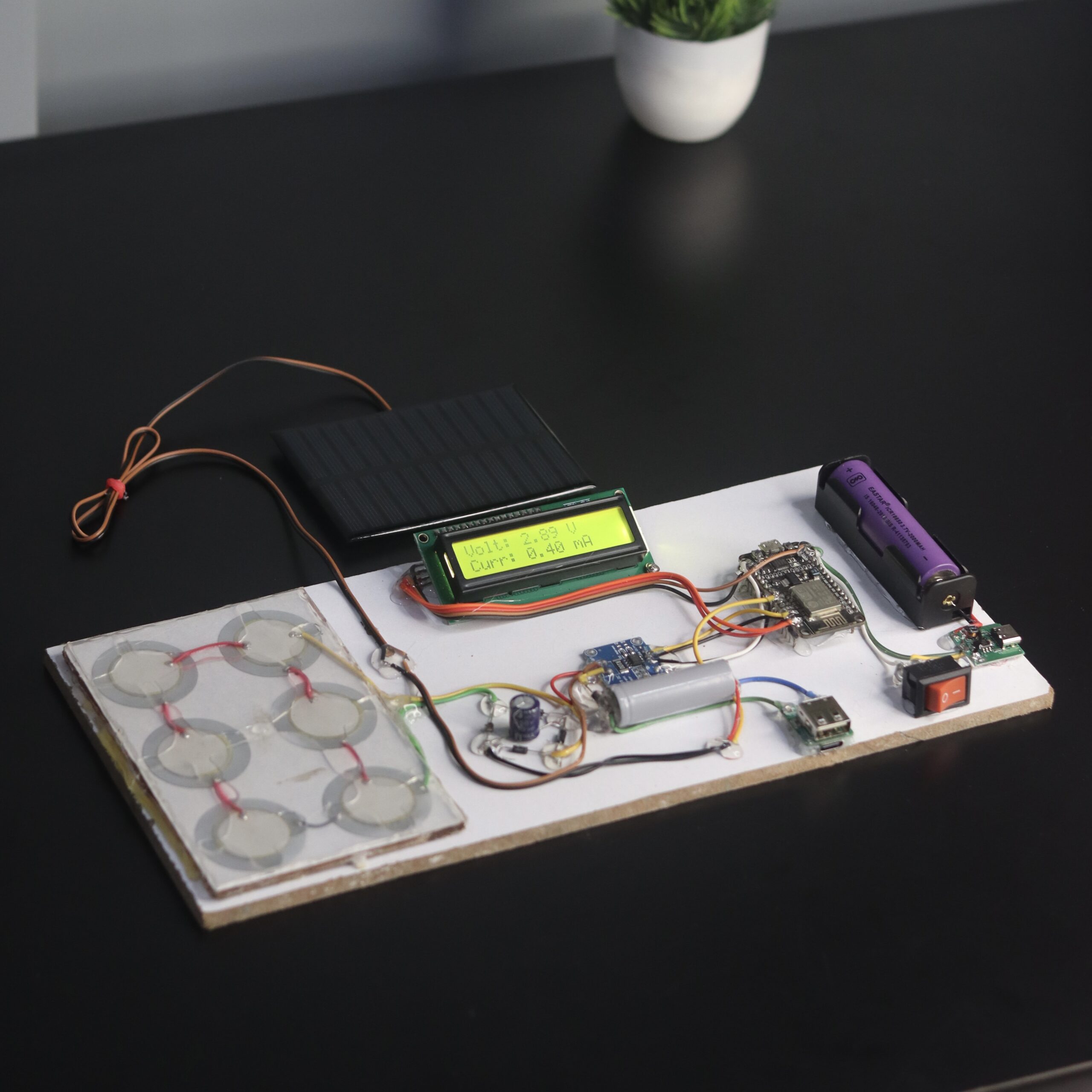

This is an advanced, eco-friendly Hybrid Energy Harvesting Project that generates clean electricity from two renewable sources: Mechanical Footsteps (via Piezoelectric sensors) and Solar Energy. Equipped with an ESP8266 Wi-Fi module, this project features full IoT capabilities, allowing users to monitor live voltage and current generation from anywhere in the world via the Blynk Mobile App. It stores the generated power in a rechargeable battery to safely charge mobile phones and other USB devices, making it a perfect solution for smart cities and green energy research.

🔥 Key Features
* Dual Energy Harvesting: Combines Kinetic (Footstep) energy and Solar energy for maximum efficiency.

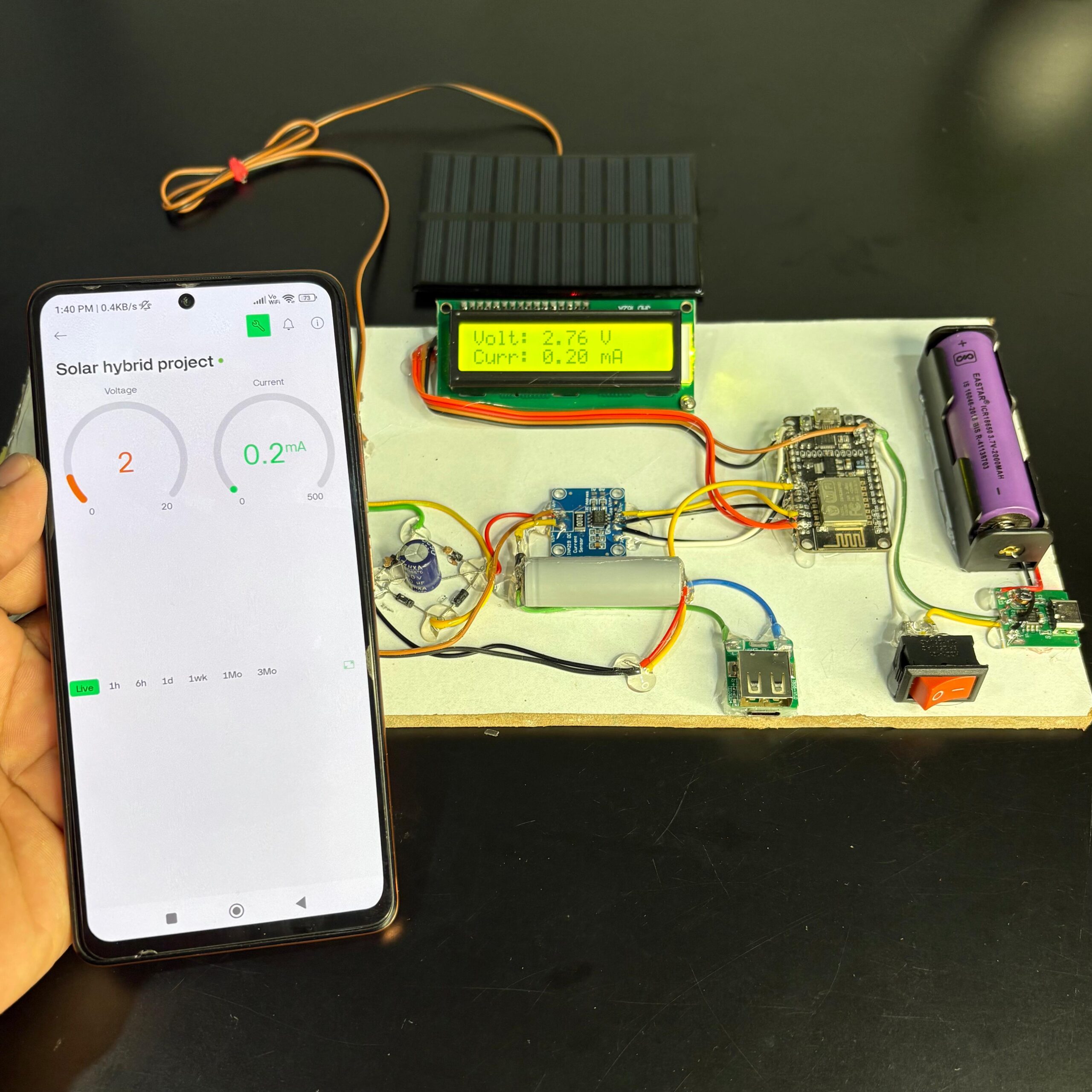

* IoT Cloud Integration: Real-time data logging and monitoring on the Blynk App via ESP8266.
* Dual Display System: View live stats on both the physical 16×2 I2C LCD screen and your smartphone.
* Power Storage & USB Output: Built-in power management to store energy in a 3.7V Lithium-ion battery and charge smartphones.
* Highly Educational: Perfect for engineering students, hobbyists, and tech innovators looking for a complete embedded system + IoT prototype.

⚠️ No Soldering, No Coding, No Assembly Required!

Just unbox, turn on the switch, and your live working project is ready for presentation.

Product Highlights (Ready-to-Use Benefits)
* 100% Plug & Play: Fully built on a rigid base board, tested, and pre-programmed.
* Dual Energy Harvesting: Live generation from both mechanical footsteps and solar panel.
* Complete IoT Setup: Pre-configured to connect with the Blynk App to show real-time voltage and current analytics on a smartphone.
* Dual Monitoring: Hardware features a crisp 16×2 I2C LCD screen alongside the mobile dashboard.
* Mobile Charging Output: Includes a functional USB port capable of charging mobile phones using the stored harvested energy.

⚙️ How it Works & System Specifications

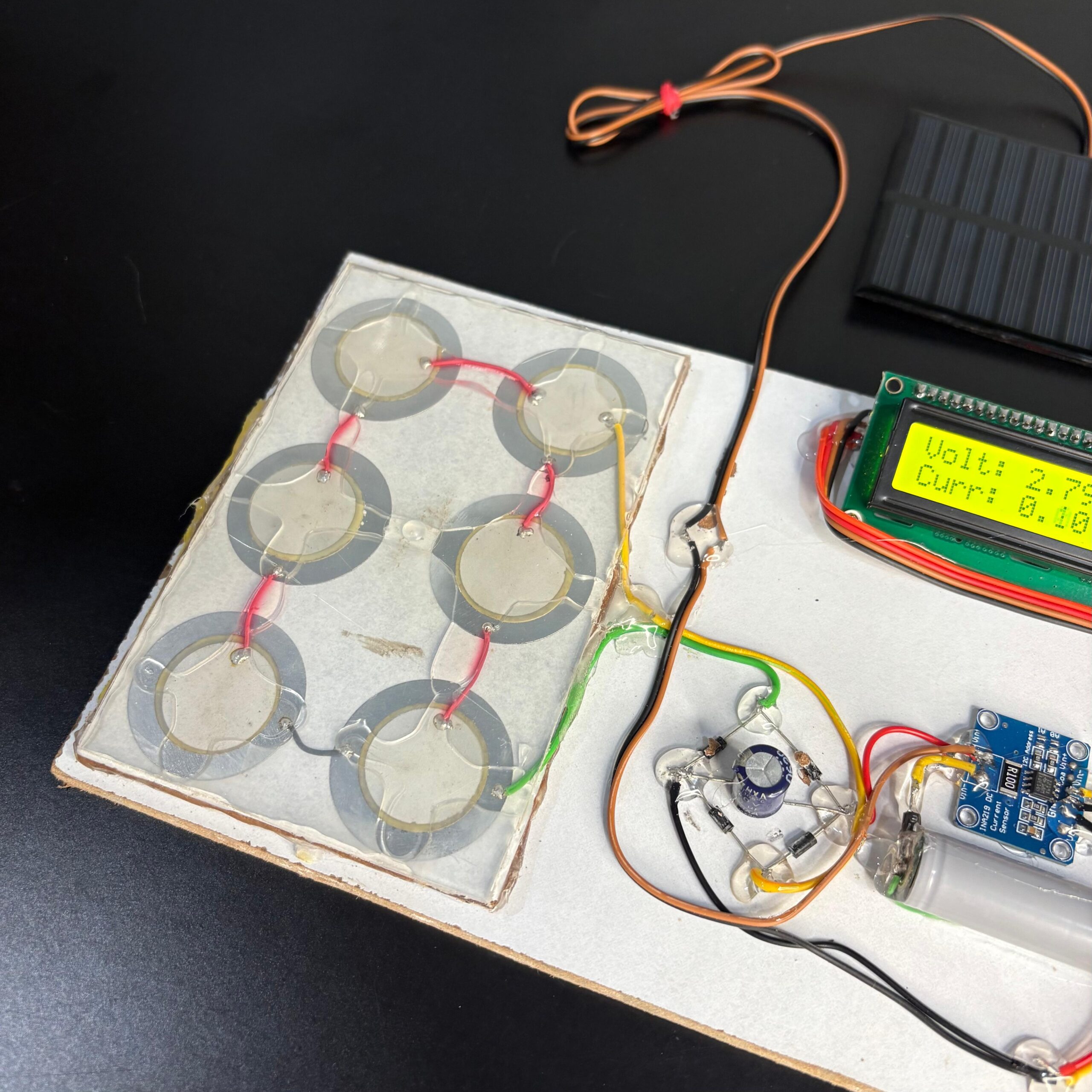

1. Mechanical Inputs:  Step on the integrated Piezo plate array to generate AC voltage, which is instantly converted to smooth DC via a custom built-in Bridge Rectifier (Diodes + Capacitor filter).

2. Solar Input: The bundled mini solar panel continuously tops up the system using ambient light.

3. Smart Power Analytics: An onboard INA219 current sensor precisely monitors the incoming power and routes data through the pre-flashed ESP8266 NodeMCU.

4. Power Storage & Delivery: The energy is safely stored in a premium 3.7V 18650 Li-ion battery. A built-in booster module provides a stable 5V USB output to power up smartphones.

📦 What Will You Receive in the Box?
* 1x Fully Assembled & Wired Hybrid Energy Project (Mounted safely on a clean presentation board).
* Pre-loaded Source Code (Already flashed inside the microcontroller).
* Step-by-Step User Manual / Guide on how to connect it to your local Wi-Fi and setup the Blynk App.
* Complete Circuit Diagram & Project Documentation (Soft copy sent via email for your presentation/report support).

🎯 Perfect For:
* Final Year Engineering Project Submissions (ECE, EEE, CSE).
* Technical Innovation Exhibitions & College Fests.
* Ready-made Demonstration Models for Schools & Tech Institutes.
